Sunday, September 20, 2015

It’s bent


As greater number of fans/drivers acquire the most sacred Corolla GT-S.  Parts are becoming more and more scarce.  One such part are the rear end axles.  What to do when one gets bent?

Since these pieces are rare and command a high price in the used market, my pack mentality is always to save it for later as a backup.  But from what I’ve seen over the years, parts have either been thrown away, or sold off to unsuspecting individuals.

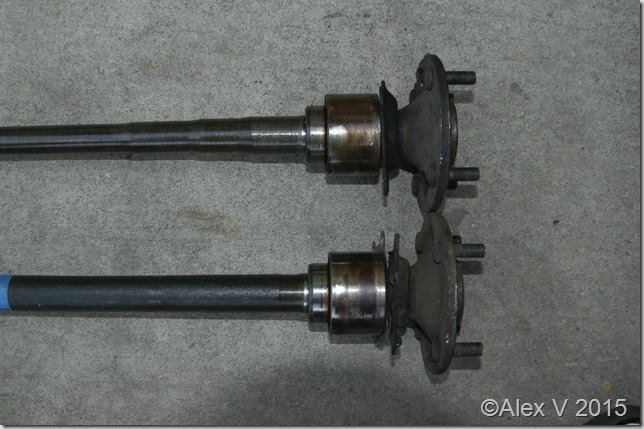

I’ve been sitting on this bent back up for a while (top axle).  I checked to see how much it would cost to bend it back, and decided it was more than what it was worth.  Since I got my own press why not try it myself.  Got nothing to lose.

This axle was over an 1/8th inch off, the maximum deflection according to the factory manual is .032”.  So I really wasn’t going to be using this piece, unless it was worse case scenario.


Didn’t have a proper rig to set this up, so just make do with what I have on hand.


Since I don’t do this for a living and lack the proper tools, lots of patience was required to get it straight.  After numerous tries, I got it down to a respectable number of .018”, that is way under the max of .032”.  Yes I did taken into account an extra .010” since I’m using a chinese dial indicator.  That still keeps me at .028”, still under the .032” max.

I’ll still keep this as a backup axle.  Now I should buy up the bent up axles that were probably going to be trashed so I can keep them in the back too.
